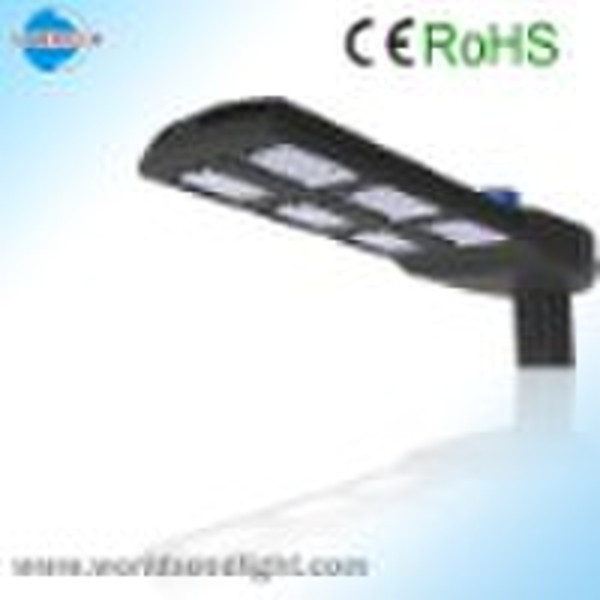

High power 84lm/w NICHIA LEDs with SPECIAL thermal

High efficiency LED Modular street light 1. High Luminaire efficacy can help you get payback within 4 years to meet the standard.2. Patented design optical module enlarge light distribution angle to 150 degree and meet the protection of IP66.3. The metallic surfaces of the housing are thoroughly cleaned, etched, aluminum chromated and dried before the application of polyester powder coating.4. Post top and side entry installation for option.5. The luminaire construction consists of a power supply compartment and optical modules which help improving heat dissipation and safer. 6. Our optical module incorporate extruded aluminium heatsinks, which are proven to work more efficiently than other die-cast equivalents. 7. More special designs inside. Technical Specifications (Modern design)Model No.TSL-4024-02TSL-4018-02TSL-2512-02TSL-1006-02Input Voltage90-260 VAC (24 VDC) , 50/60 HzLED Power Consumption216W162W108W54WSystem Power Consumption245W184W123W61WPower Factor>0.95Total Harmonic Distortion<25%Surge Protection>6.5 KVLuminaire Initial Flux20,740 lm15,550 lm10,370 lm5,180 lmLuminaire Efficacy>84 lm/WColor Temperature4500-5600 KCRI70Light Distribution CurveBat Wing Type / Rectangular FaculaIngress ProtectionIP66Operating Condition-40ºC - 50ºC, 10%-95%RHNet Weight16 Kg13 Kg10 Kg8 KgModule Quantity8642
